$96.99
- Easy, Fast Returns Guarantee
- The best quality products, always.
- Free Shipping Worldwide
- Quality You Can Trust

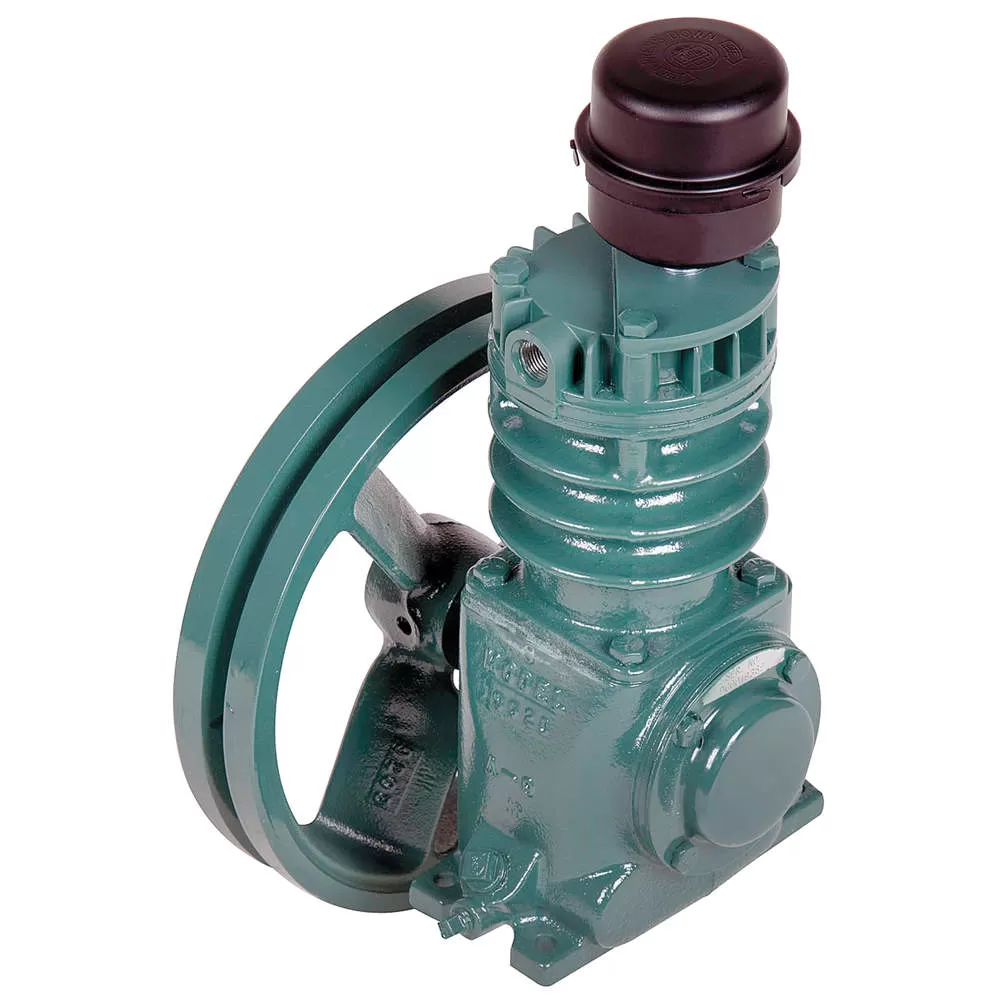

| Item | Air Compressor Pump |
|---|---|
| Bore Dia. | 2.375″ |
| Construction | Cast Iron |
| Finish | Painted Green |
| Free Air CFM @ Max. Pressure | 1.9, 2.45 |
| HP | 3/4, 1 |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 125 psi |
| Mounting Pattern | 5-1/2″ W x 2-1/8″ D |
| NPT Outlet | 3/8″ |
| Number of Cylinders | 1 |
| Number of Stages | 1 |
|---|---|
| Oil Capacity | 6 oz. |
| Overall Depth | 7.75″ |
| Overall Height | 16.187″ |
| Overall Width | 14.187″ |
| Pump RPM | 715,919 |
| Rotation | CCW |
| Sheave Size @ 1725 RPM | 5-29/64″ |
| Stroke Length | 2″ |
| Valve Material | Swedish Steel |
| Valve Type | Disc |
- Flywheel Dia. (10-1/8″)
- Flywheel Included (Y)
- Groove Quantity (1)
- Groove Section (A)
| Height (cm) | 23.11 |
|---|---|
| Length (cm) | 41.4 |
| Width (cm) | 32.77 |
| HS Code | 8414801615 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 13.82 |
Be the first to review “CHAMPION B1 Air Compressor Pump 1 Stage”
