$98.99
- Easy, Fast Returns Guarantee
- The best quality products, always.
- Free Shipping Worldwide
- Quality You Can Trust

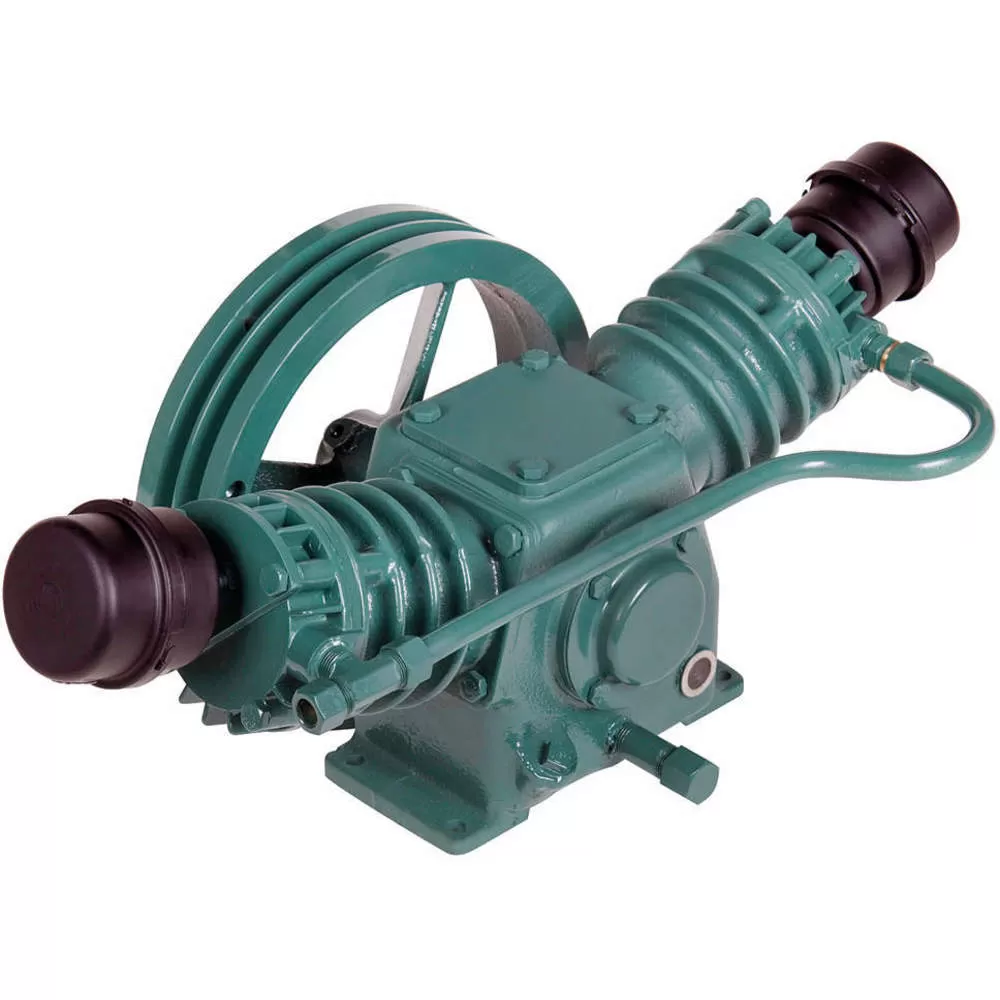

| Item | Air Compressor Pump |
|---|---|
| Bore Dia. | 2.375″ |
| Construction | Cast Iron |
| Finish | Painted Green |
| Free Air CFM @ Max. Pressure | 2.9, 5.8 |
| HP | 1-1/2, 2 |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 125 psi |
| Mounting Pattern | 4″ W x 3/8″ D |
| NPT Outlet | 3/8″ |
| Number of Cylinders | 2 |
| Number of Stages | 1 |
|---|---|
| Oil Capacity | 16 oz. |
| Overall Depth | 10.25″ |
| Overall Height | 11 11/32″ |
| Overall Width | 23.437″ |
| Pump RPM | 731, 929 |
| Rotation | CCW |
| Sheave Size @ 1725 RPM | 4-1/4″, 5-1/4″ |
| Stroke Length | 2″ |
| Valve Material | Swedish Steel |
| Valve Type | Disc |
- Flywheel Dia. (10-1/8″)
- Flywheel Included (Y)
- Groove Quantity (2)
- Groove Section (A)
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 52.83 |
| Width (cm) | 45.72 |
| HS Code | 8414801615 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 22.98 |
