$98.99
- Easy, Fast Returns Guarantee
- The best quality products, always.
- Free Shipping Worldwide
- Quality You Can Trust

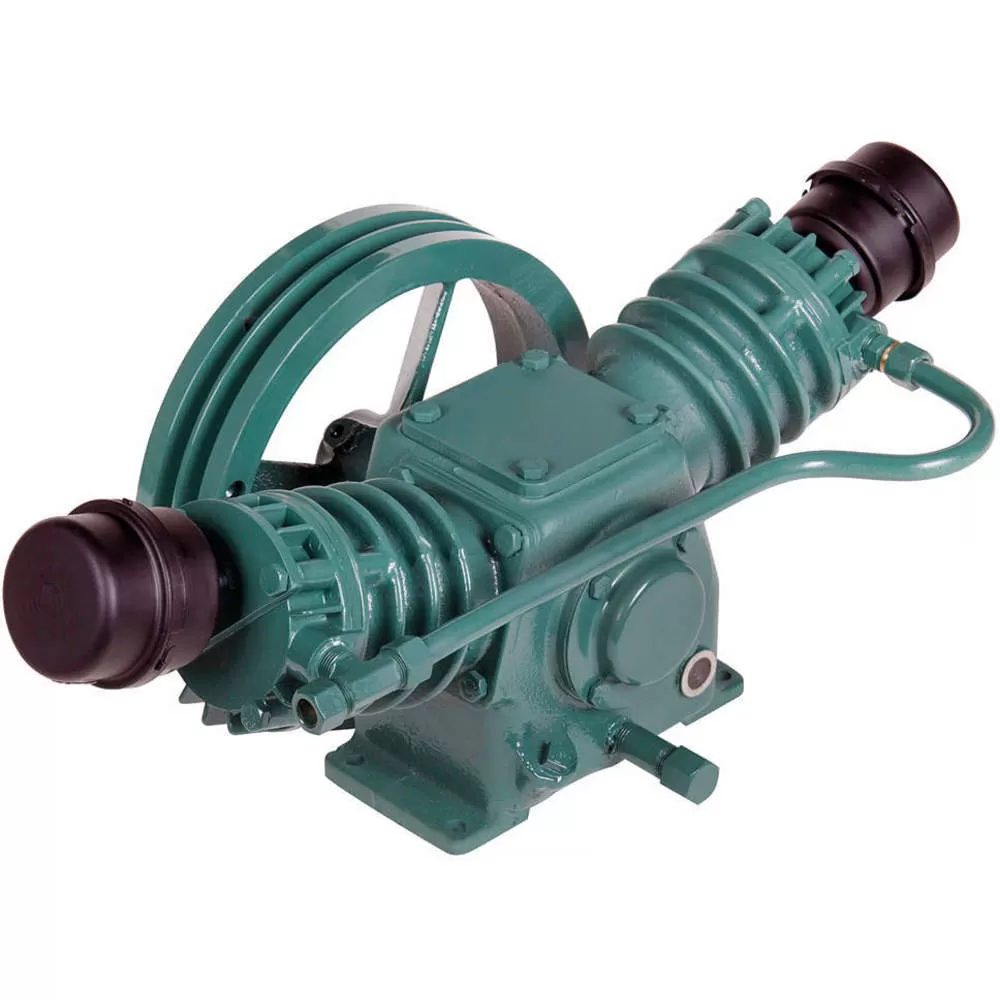

| Item | Air Compressor Pump |
|---|---|
| Bore Dia. | 2.375″ |
| Construction | Cast Iron |
| Finish | Painted Green |
| Free Air CFM @ Max. Pressure | 2.9 |
| HP | 1 |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 125 psi |
| Mounting Pattern | 4″ W x 3/8″ D |
| NPT Outlet | 3/8″ |
| Number of Cylinders | 2 |
| Number of Stages | 1 |
|---|---|
| Oil Capacity | 16 oz. |
| Overall Depth | 10.437″ |
| Overall Height | 15 3/32″ |
| Overall Width | 23.437″ |
| Pump RPM | 505 |
| Rotation | CCW |
| Sheave Size @ 1725 RPM | 3-3/4″ |
| Stroke Length | 2″ |
| Valve Material | Swedish Steel |
| Valve Type | Disc |
- Flywheel Dia. (12-5/8″)
- Flywheel Included (Y)
- Groove Quantity (2)
- Groove Section (A)
| Height (cm) | 29.21 |
|---|---|
| Length (cm) | 52.07 |
| Width (cm) | 45.72 |
| HS Code | 8414801605 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 24.18 |
