| Item | Air Compressor Pump |
|---|---|
| Bore Dia. | 5″, 2 3/4″ |
| Construction | Cast Iron |
| Duty Cycle | Continuous |
| Free Air CFM @ Max. Pressure | 35 CFM @ 175 psi |
| HP | 7 1/2, 11 hp |
| Lubrication Type | Splash Lubricated |
| Material | Cast Iron |
| Max. Pressure | 175 psi |
| Mounting Pattern | 11 3/4″ W x 8 1/2″ D |
| NPT Outlet | 3/4″ |
| Number of Cylinders | 2 |
| Number of Stages | 2 |
|---|---|
| Oil Capacity | 74 fl. oz. |
| Outlet Size | 3/4″ |
| Outlet Type | NPT |
| Overall Depth | 25 13/16″ |
| Overall Height | 20 13/16″ |
| Overall Width | 27.625″ |
| Pump RPM | 1050 RPM |
| Rotation | CW |
| Sheave Size @ 1725 RPM | 5 3/4″, 8 61/64″, 11 23/64″ |
| Stroke Length | 3 1/2″ |
| Valve Type | Finger |

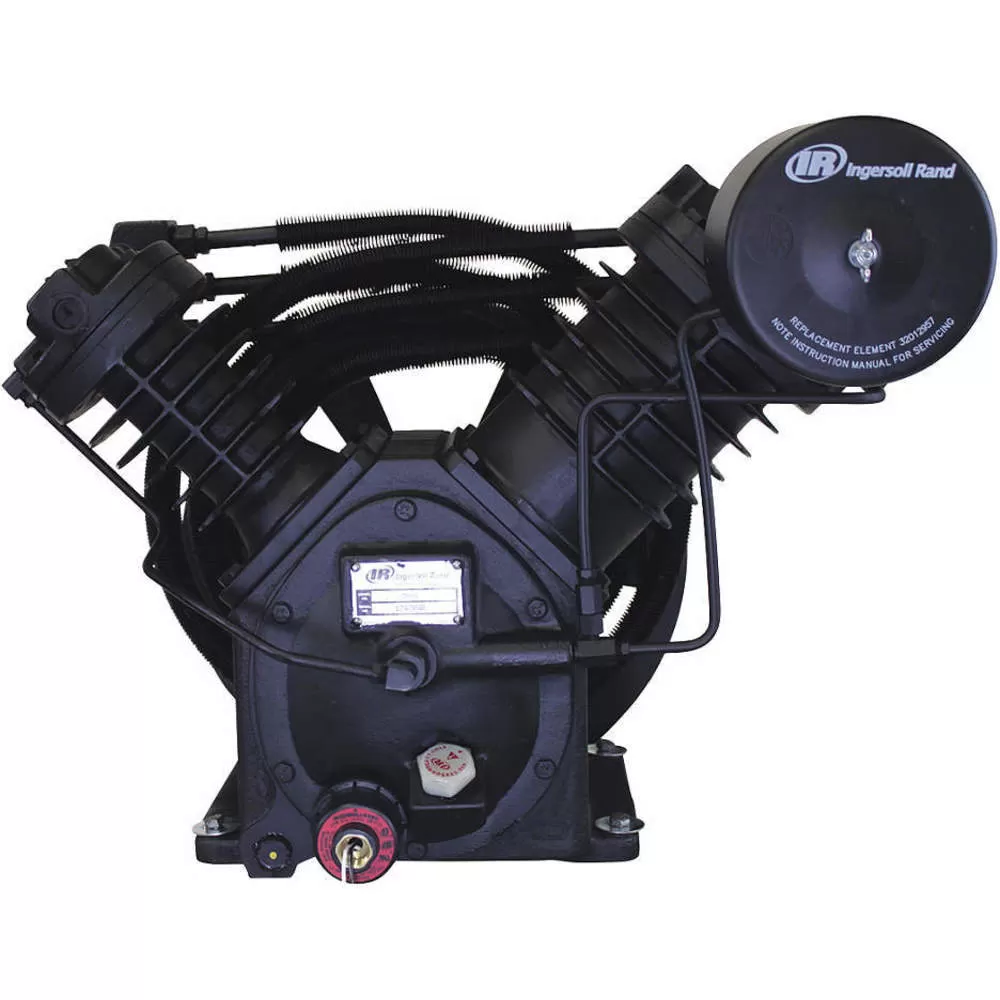

Ingersoll Rand 2545 air compressor pump is designed for powering a two stage reciprocating air compressor that is used for providing high pressure air output. This air compressor pump is ideal for body & machine shops, automotive servicing, fleet maintenance, woodworking, production & manufacturing lines, dry cleaning, farming and general maintenance applications. This air cooled compressor pump features overhung crankshaft, individually cast cylinders and one piece connecting rod for minimising & simplifying the maintenance requirement. It features cast iron construction that offers high durability and ensures over 15000 hours of problem free operation. In contrast to petroleum based lubricants, this pump features synthetic lubricant for increasing the pump’s efficiency while minimising the damage against high temperatures.
Ingersoll Rand air compressor pump’s V shape design features finned cylinders for increasing the pump cooling in closed off environments. It has a finned copper intercooler that increases the pump’s efficiency while lowering the operating temperature. Ingersoll Rand 2545 air compressor pump has high efficiency finger valves that provide high pressure & consistent air delivery throughout the operation. This air compressor pump offers a magnetic starter which provides a safe way for starting the motor under load. Its oversized industrial grade bearings minimise the friction, thereby extending the pump’s durability.
| Height (cm) | 73.66 |
|---|---|
| Length (cm) | 81.28 |
| Width (cm) | 80.01 |
| HS Code | 8414801625 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 132 |
