| Item | Air Impact Wrench |
|---|---|
| Air Inlet | 3/8″ NPT |
| Anvil | Standard |
| Average CFM @ 15 Second Run Time | 9.5 |
| Blows per Minute | 1000 |
| CFM @ Full Load | 39.0 |
| Duty | General |
| Free Speed | 5500 rpm |
| Housing Material | Aluminum |
| Max. Bolt Capacity | 1-1/4″ |
| Max. Torque | 1200 ft.-lb. |
|---|---|
| Min. Hose Size | 1/2″ |
| Overall Length | 9.5″ |
| Required Pressure | 90 psi |
| Retainer Type | Ring |
| Square Drive Size | 1″ |
| Style | Pistol Grip |
| Tool Weight | 12.5 lb. |
| Torque Range | 200 to 900 ft.-lb. |

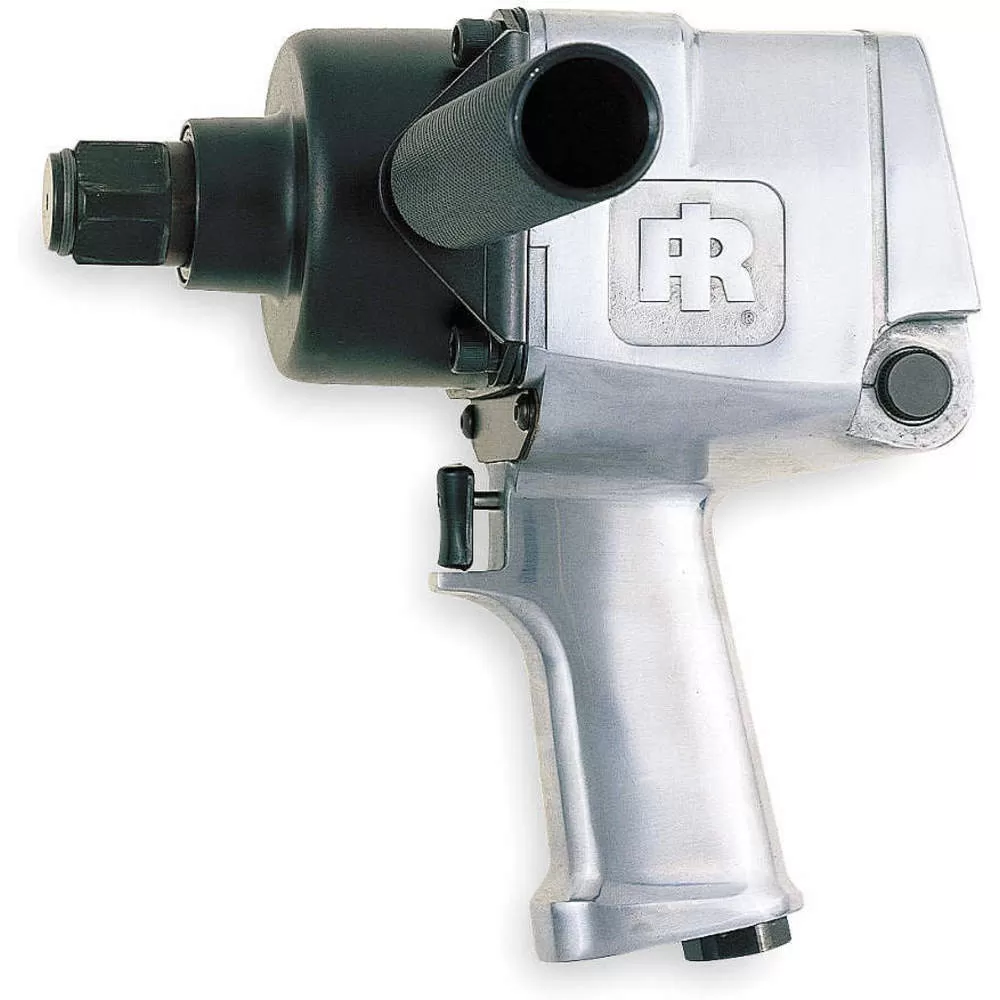

- Compressed air impact wrench for heavy-duty fastening of industrial-grade bolts in automotive, maintenance and production industries
- Piston-style grip with horizontal handle offers superior control at multiple angles and reduced worker fatigue
- Features durable aluminium housing offering lightweight & rigid construction and pressure feed lube system for a longer operational life
- Powered by a minimum of 90 PSI through a 3/8 inch NPT port and generates a maximum of 1200 ft-lb at 5500 RPM with 1000 BPM
- Single hammer impact mechanism for striking the anvil at full force, thereby producing high torque
- Use for fastening or loosening the bolts of sizes up to 1-1/4 inches with 1-inch square drive
- Retainer ring holds the wrench bit in place
| Height (cm) | 12.19 |
|---|---|
| Length (cm) | 30.73 |
| Width (cm) | 28.45 |
| HS Code | 8467115040 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 6.94 |
| UPC | 663023003740 |
