$98.99
- Easy, Fast Returns Guarantee
- The best quality products, always.
- Free Shipping Worldwide
- Quality You Can Trust
| Item | Air Pilot Valve |
|---|---|
| Actuator/Return | Remote Pilot |
| CFM | 5.70 |
| Coefficient of Volume | 5.70 |
| Cv | 5.7 |
| Height | 2.68″ |
| Length | 8.62″ |
| Max. Operating PSI | 145 |
| Max. Temp. Range (F) | 5 to 120 |
| Number of Positions | 3 |
|---|---|
| Number of Ways | 4 |
| Pilot Port Size NPT (In.) | 1/8 |
| Pilot Pressure | 35 |
| Port Size | 1/2 Inlet, 1/2 Exhaust |
| Type | In-Line, Double, All Ports Blocked |
| Uses | General Pneumatics Applications |
| Vacuum | External Pilot |
| Width | 1.65″ |

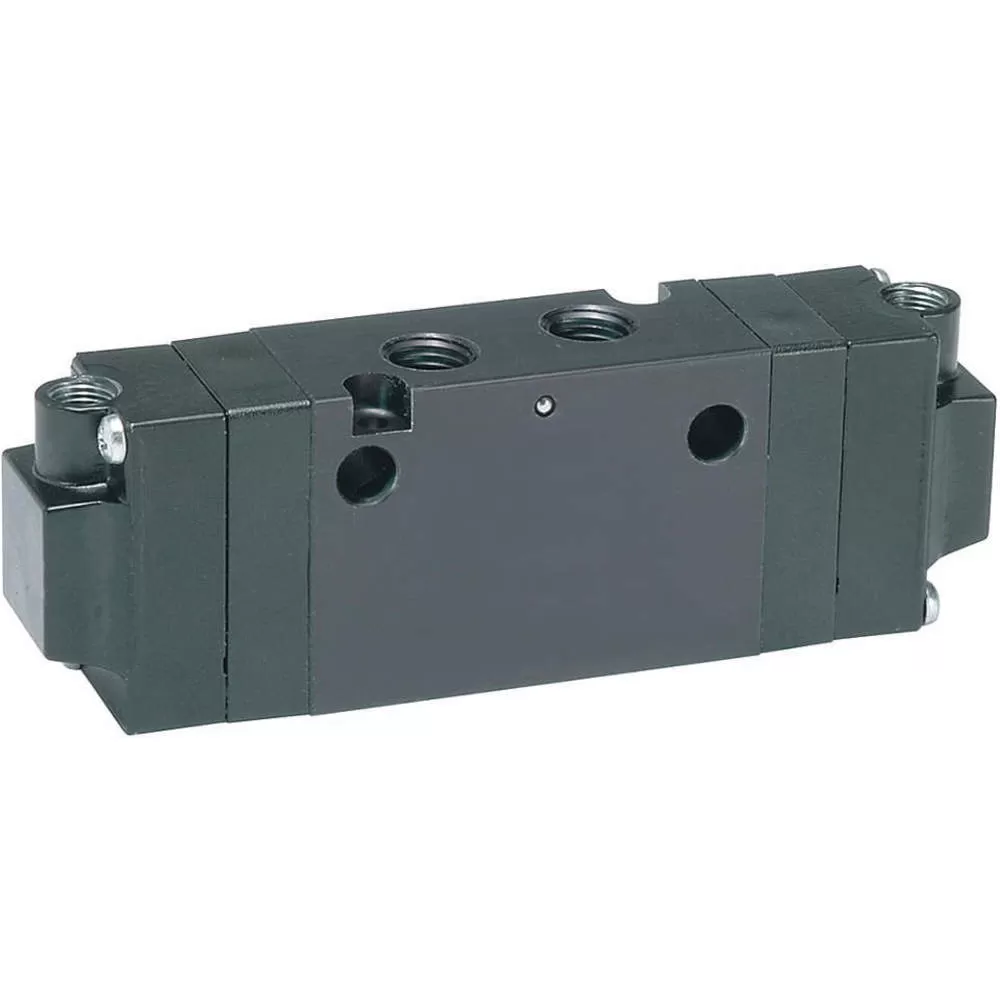

- B Series pilot air control valve for 4-way control of airflow
- Features wear compensation seal system for a quick response with added durability, capable of withstanding pressure up to 150 psi
- Temperature range of 5 to 120 deg F
| Height (cm) | 5.59 |
|---|---|
| Length (cm) | 27.43 |
| Width (cm) | 13.97 |
| HS Code | 8481200080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.36 |
