Name: Our Functional and stylish THOMAS PUMPS 617CA22 Piston Air Compressorvacuum Pump 18hp is in short supply in spring 2023
SKU: AE7LBV
Price: 95.99 USD
Availability: InStock

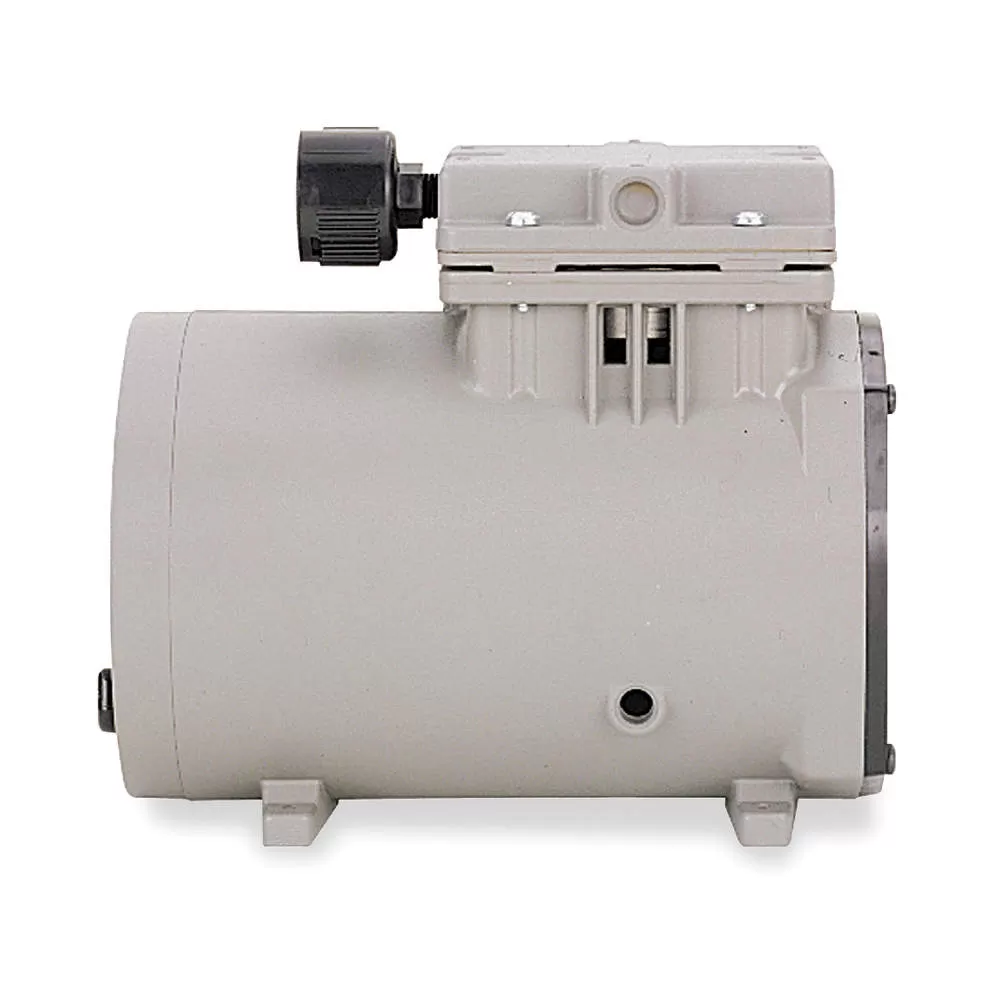

THOMAS PUMPS 617CA22 Piston Air Compressorvacuum Pump 18hp

$95.99

SKU: AE7LBV Categories: Air Compressors And Vacuum Pumps, Piston Air Compressor/Vacuum Pump

Easy, Fast Returns Guarantee
The best quality products, always.
Free Shipping Worldwide
Quality You Can Trust

Description
Reviews (0)

Item	Piston Air Compressor/Vacuum Pump
Cylinder Material	Aluminium
Design	Lap Joint Piston Ring
Finish	Gray
Free Air CFM @ 0 In. Hg	0.78
Free Air CFM @ 0 PSI	0.78
Free Air CFM @ 10 In. Hg	0.47
Free Air CFM @ 100 PSI	0.07
Free Air CFM @ 20 In. Hg	0.16
Free Air CFM @ 20 PSI	0.59
Free Air CFM @ 40 PSI	0.42
Free Air CFM @ 50 PSI	0.37
Full Load Amps	3.1
HP	1/8
Hz	60
Inlet Size	1/4″ NPT
Lubrication Type	Oil-Less

Max. PSI Cont./Int.	100/100
Max. Vacuum	25.6″ Hg
Motor Type	Shaded Pole, Thermally Protected with High Torque Start Winding
Number of Cylinders	1
Outlet Size	1/4″ NPT
Overall Height	6 4/5″
Overall Length	8″
Overall Width	5″
Phase	1
Power Cord	Yes
RPM	1750
Sound Rating	63 dBA @ 60 psi
Temp. Range	104 Degrees to 50 Degrees F
Thermal Protection	Yes
Valve	Corrosion Resistant Sandwich
Voltage	115 VAC

Oilless compressor pump designed for high-pressure airflow operations in industrial machinery, automotive and manufacturing applications
Features a shaded-pole thermally protected motor for protecting the sensitive components from excessive temperatures
Lightweight aluminium cylinder for high strength and long-term durability
In compliance with UL standards
